DCT30 and DCT40 Doosan Bobcat Paving Breakers

Doosan Bobcat® South Africa supplies paving breakers (also called jack hammers) designed with performance and reliability in mind. Doosan Paving Breakers should be chosen carefully to ensure the right tool is selected for the right job. Tool weight vs break force will determine tool performance and user comfort.

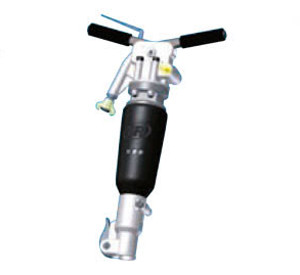

DCT30 Paving Breaker

Designed for medium demolition applications e.g.asphalt and concrete, up to the point where a DCT40 would provide better performance due to it's weight.

Pneumatic Pacing Breakers

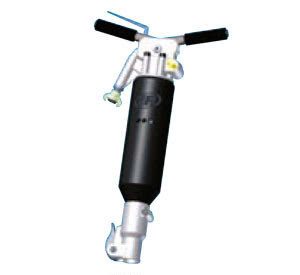

DCT40 Paving Breaker

The DCT40 will perform well in heavy concrete demolitions e.g slabs more than 20cm thick. The DCT40 is intended for vertical or inclined downward breaking.

Pneumatic Pacing Breakers

  • DCT30 Specifications
  • DCT40 Specifications
  • Accessories
SPECIFICATIONS: DCT30BS DCT30BV
Handle Type Standard Vibration dampening
Impact frequency bpm 1200 1200
Air consumption m3/min 1.80 1.80
Guaranteed noice level @ 6 bars dB(A) 110 110
Hand arm vibrations measured on 3 axis m/s2 11.9 3.5
Shank size mm 28Hx160
32Hx160		 28Hx160
32Hx160
Tool weight kg 30.9
30.9		 30.0
30.0
Length without chisel mm 700
659		 730

To find out more about the pneumatic breakers, contact us at Doosan Bobcat® South Africa today.

SPECIFICATIONS: DCT40BS DCT40BV
Handle Type Standard Vibration dampening
Impact frequency bpm 960 960
Air consumption m3/min 2.0 2.0
Guaranteed noice level @ 6 bars dB(A) 110 110
Hand arm vibrations measured on 3 axis m/s2 8.8 3.5
Shank size mm 28Hx160
32Hx160		 28Hx160
32Hx160
Tool weight kg 40.9 41
Length without chisel mm 765 800

To find out more about the pneumatic breakers, contact us at Doosan Bobcat® South Africa today.

32x160 Hex Shank Steels

Description Length below collar mm
Moil point 450
Narrow chisel 450
Tarmac / asphalt cutter 115mm wide 280
Digging spade 125 mm wide 355
Digging chisel 75 mm wide 355
Stem for tamping pad 230
180mm diameter tamping pad /

Hose and Couplings

Description
Moil pointHose tail to suit 3/4" (19mm) hose
Hose clamp
3/4" (19mm) BSP male coupling
3/4" (19mm) BSP female coupling
Coupling seal, rubber
Pressed hose clamp
Hose safety whip check
0.35 litre lubrication

To find out more about the pneumatic breakers, contact us at Doosan Bobcat® South Africa today.
